GRID CONNECT SYSTEM

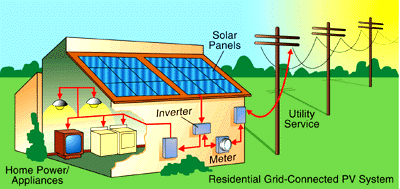

Whenever the sun shines (and even in overcast weather), the solar cells generate electricity. The grid connect inverter converts the DC electricity produced by the solar panels into 240V AC electricity, which can then be used by the property/household.

If a grid connect system is producing more power than is being consumed, the surplus is fed into the mains power grid. Some electricity companies will meter the electricity fed into the grid by your system and provide a credit on your bill.

When the solar cells are not producing power, for example at night, your power is supplied by the mains power grid as usual. The energy retailer charges the usual rate for the power used.

As all of the components in a grid connect system have no moving parts, you can expect a long and hassle free life from your solar power system! Generous government  solar rebates and incentives mean you can also save thousands on a grid connect system for a limited time!

What is Grid Connect

Most customers choose a roof mounted solar power system. For most of Australia, the modules should be installed facing north in order to take full advantage of the sun; however a west facing installation may also be desirable.

Our accredited grid connect installers will aim to install the modules at an angle which ensures that the glass face of the modules is positioned at 90 degrees to the sun for most of the day.

As an example, in Sydney this angle would be approximately 30-40 degrees to the horizontal. Standard Australian roofs usually have an angle of elevation of ~22 degrees, which is acceptable. This provides a close approximation to the position in which a solar array produces its maximum output. For installations on flat roofs an elevated array frame allows the solar modules to be installed at an angle of elevation of approximately 30 degrees from the horizontal.

Installing a grid connect solar system
Sizing Solar System

5 kW System

22 kWH
